Tube Sizes
Engineered Tube Sizes for Efficient Heat Transfer
Tube OD - 3/8"
| Parameter | Option 1 | Option 2 | Option 3 | Option 4 | Option 5 |
|---|---|---|---|---|---|
| Tube Pitch (mm) | 25.4 | 25.4 | 25.4 | 25.4 | 31.7 |
| Row Pitch (mm) | 22 | 19.01 | 18.5 | 15.88 | 27 |
| Fin Thickness | 0.11–0.13 | 0.18–0.2 | 0.15 | 0.15 | 0.15 |
| Fins per inch | 9–13 | 5–8 | 9–13 | 9–13 | 9–13 |
| Expansion | Mechanical / Hydraulic | ||||
| Fin Material | Aluminium / Copper | ||||
| Tube Material | Copper | ||||
| Header Pipe | 1/2" to 3-5/8" | ||||
| Hair Pin | 120" | ||||
Tube OD - 5/8"
| Parameter | Details | |
|---|---|---|
| Tube Pitch | 38.1 | |
| Row Pitch | 33 | |
| Fin Thickness | 0.15 | |
| Fins per inch | 5–12 | |
| Expansion | Mechanical / Hydraulic | |
| Fin Material | Aluminium / Copper | |
| Tube Material | Copper | |
| Header Pipe | 1/2" to 3-5/8" | |
| Hair Pin | 84" | |
Tube OD - 1/2"
| Parameter | Option 1 | Option 2 | Option 3 |
|---|---|---|---|
| Tube Pitch (mm) | 31.75 | 31.75 | 38 |
| Row Pitch (mm) | 27 | 22 | 33 |
| Fin Thickness | 0.15 | 0.15 | 0.15 |
| Fins per inch | 5–12 | 5–12 | 5–12 |
| Expansion | Mechanical / Hydraulic | ||
| Fin Material | Aluminium / Copper | ||
| Tube Material | Copper | ||
| Header Pipe | 5/8" to 4" | ||
| Hair Pin | 144" | ||
Tube OD - 7mm
| Parameter | Type 1 | Type 2 |
|---|---|---|
| Tube Pitch | 21 | 21 |
| Row Pitch | 12.5 | 12.7 |
| Fin Thickness | 0.12 | 0.12 |
| Fins per inch | 12–15 | 12–15 |
| Expansion | Mechanical / Hydraulic | |
| Fin Material | Aluminium / Copper | |
| Tube Material | Copper | |
| Header Pipe | 1/2" to 11/8" | |
| Hair Pin | 84" | |
Our Capabilities
Delivering Precision-Engineered Thermal & HVAC Solutions with Innovation and Excellence
Advanced Manufacturing
Equipped with modern machinery and fabrication tools to manufacture high-performance cooling coils, condensing units, and heat-exchange systems.
Custom Design & Engineering
Tailor-made thermal solutions engineered as per airflow, cooling capacity, pressure ratings, and application-specific requirements.
Quality Assurance
Strict quality control and rigorous performance testing ensure durability, efficiency, and long-term reliability of every product.
Thermal & HVAC Expertise
Extensive industry experience in industrial plants, cold storage, HVAC systems, and commercial cooling applications.
Project Execution
Complete project support from consultation to final delivery with timely execution and seamless coordination.
Customer Support
Dedicated technical assistance and after-sales service to maintain long-term, trust-based client relationships.
Coating
Advanced surface coating solutions for durability and performance
Anti Corrosive Coating(silver)

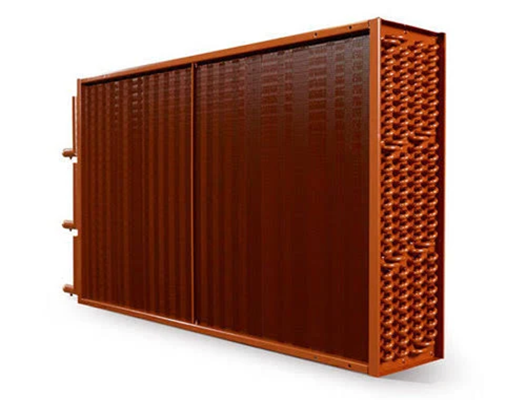

Heresite Coating(brown)
